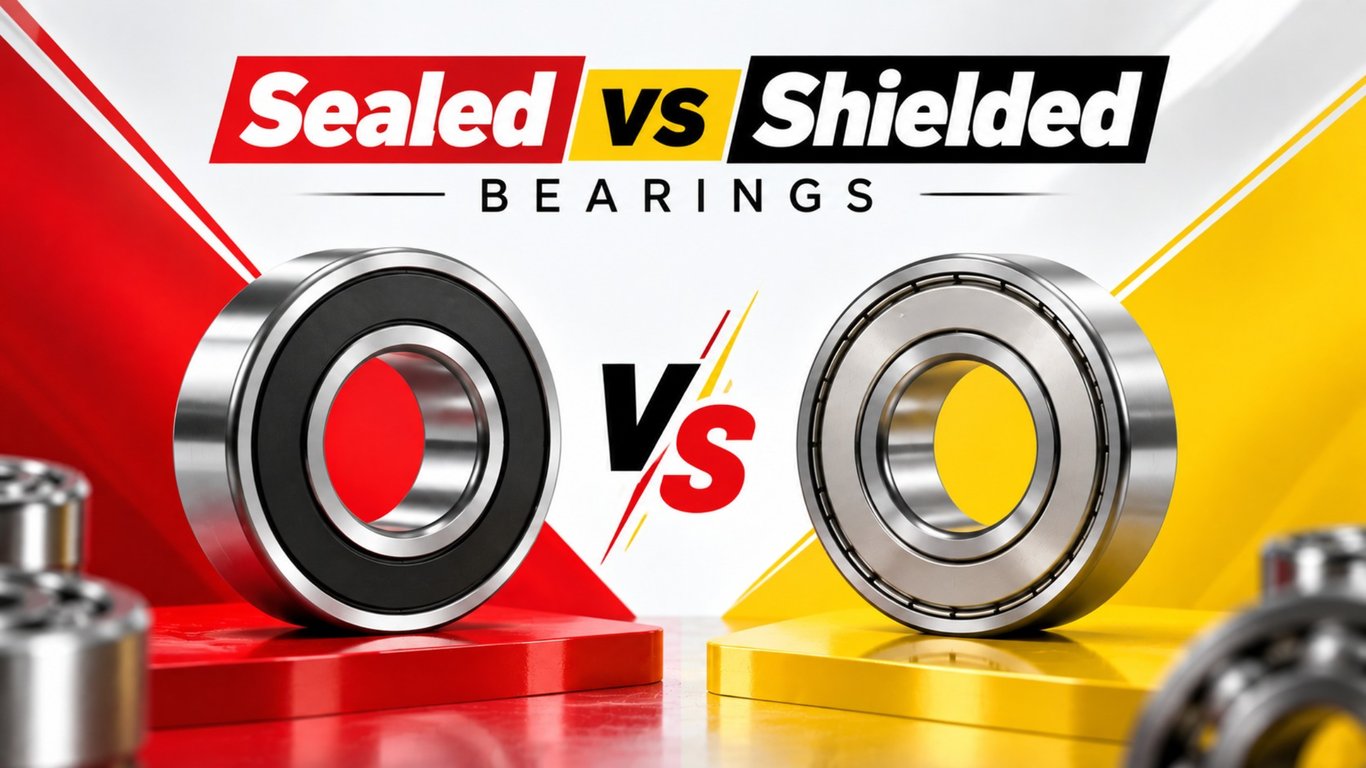

Sealed vs Shielded Bearings: Know The Difference
Understand the differences between sealed and shielded bearings. Identify how bearing manufacturers improve machine longevity during operation.
With modern innovations in industrial machinery and mechanical engineering, engineers must select appropriate components to ensure smooth machine operation. When picking bearings for your machines, a single detail can make a whole difference.
Choosing between sealed and shielded bearings can be difficult for many people, as these products look almost identical. An incorrect selection can lead to additional expenses and even equipment failures. It is especially critical for electric motors, industrial machinery, agricultural equipment, and the automotive industry.
A reputable bearing manufacturer is always ready to advise you regarding your equipment requirements. According to the Bearing Specialists Association, bearing failures are usually caused by contamination and lubrication problems. This blog discusses the differences between sealed and shielded bearings for optimal operation of industrial machines.
Need For Protection Of Bearings
Bearings operate under constant pressure, friction, and speed. Various contaminants, such as water, dust, and dirt, can enter the bearing and damage the rolling elements or the lubricant. Manufacturers use seals and shields to protect the inner parts of bearings and prolong their life.
Despite their similar functions, these products behave differently in different situations. That is why understanding sealed or shielded bearings is necessary to make the difference.
What Are Shielded Bearings?
Shielded bearings have metal shield covers on one or both sides. The shields do not touch the inner ring. Instead, there is a small gap.
This allows free rotation while providing limited protection against dust and debris compared with sealed bearings.
These products are usually pre-lubricated by the manufacturer. Because the shield does not contact the bearing's inner ring, friction remains extremely low, making shielded bearings suitable for high-RPM electric motors.
Advantages Of Shielded Bearings
- Lower rolling resistance.
- Better heat dissipation.
- Higher operating speeds.
- Appropriate for clean environments.
- Sometimes it can be relubricated.
These bearings are used in fans, electric motors, machine tools, pumps, and other machines when contamination levels are low. In electric motors operating above 6,000 RPM, shielded bearings are often preferred because their lower friction reduces heat generation.
What Are Sealed Bearings?
Sealed bearings include rubber or synthetic seals that contact the inner ring directly. They provide better protection against dirt, dust, mud, moisture, and other debris.
Seals keep lubricant inside the bearing while preventing debris from entering. Most sealed bearings are designed to work their entire life cycle without relubrication. That is why they are often used in harsh working environments where maintenance is difficult.
Advantages Of Sealed Bearings
- Excellent protection from contamination.
- Reduced maintenance.
- Increased lubrication life.
- Good performance in a wet and dirty environment.
- Improvement of reliability.
These bearings are often used in automotive, construction, agricultural, and outdoor equipment, as well as in conveyors and other applications. A common mistake is installing shielded bearings in outdoor conveyors. Even a small amount of moisture eventually contaminates the grease and shortens bearing life.
Sealed vs Shielded Ball Bearings
When choosing between sealed and shielded ball bearings, many customers have questions because these two products share many similarities.
Although ball bearings and journal bearings have very similar dimensions, these products can have very different protection capabilities.
Feature | Shielded Bearings | Sealed Bearings |
Protection from dust | Moderate | Excellent |
Protection from moisture | Limited | High |
Lubrication Retention | Moderate | Excellent |
Maximum Speed | Higher | Slightly Lower |
Maintenance | May Require Lubrication | Usually Maintenance Free |
Best Environment | Clean | Dirty or wet |
The selection of sealed or shielded bearing type depends on the operating environments, not on bearing quality.
Sealed vs Shielded Bearings: Key Differences
The difference between sealed and shielded bearings consists mainly of the protection level. Shielded bearings have a small clearance between the shield and the rotating ring. It provides rotation with low resistance but does not offer great protection.
Sealed bearings include flexible contact seals that almost close this clearance, protecting the bearing from water, dust, and dirt.
In other words:
- Shields allow for maximum speed.
- Seals ensure maximum protection.
Understanding this basic difference makes selecting the right bearing much easier.
Which Type of Bearing Performs Better In Which Application?
Choose Shielded Bearings If:
- It is necessary to minimize heat generation.
- The equipment functions indoors.
- The environment is relatively clean.
- It is possible to provide maintenance.
- High-speed rotation is relevant.
Examples in such cases are:
- Electric motors.
- Industrial fans.
- HVAC systems.
- Office machinery.
- Machine tools.
Choose Sealed Bearings If:
- The equipment works outdoors.
- Maintenance access is limited.
- Moisture and dirt are common.
- Equipment should work reliably for a long time.
- The dirt can easily damage the moving parts.
Some examples include:
- Construction equipment.
- Farm machinery.
- Wheel hub assemblies of cars.
- Food processing equipment.
- Material handling equipment.
Common Misconceptions
Sealed bearings are often considered better than shielded bearings, but this is not necessarily true.
Sealed bearings can increase friction in high-speed applications with little contamination. Using shielded bearings in a high-contamination environment can also accelerate bearing failure. The choice of bearing is based on operating conditions, equipment requirements, and the maintenance schedule.
Points To Consider When Purchasing Bearings
Before deciding which type of bearing to purchase, ask yourself the following questions:
- Is the bearing going to be exposed to water or dirt?
- Is maintenance easy or hard?
- What kind of operating speed is required?
- How important is the lubrication retention?
- Does the equipment operate continuously?
Answering these questions properly will help find a bearing that meets the equipment’s performance criteria.
How An Experienced Bearing Manufacturer Helps You?
Not all bearings are of the same quality. An experienced bearing manufacturer will do rigorous quality checks to guarantee accurate dimensions, sufficient lubrication, and proper sealing performance. They can also recommend the right type of bearing based on:
- Maintenance requirements.
- Operating speed.
- Load capacity.
- Environmental conditions.
- Operating temperature range.
Selecting high-quality products will help avoid unexpected downtime and prolong equipment lifetime.
Achieve The Perfect Bearing Protection for Long-Lasting Machine Performance
A comparison of sealed vs shielded bearings can help you select the right solution for your equipment without guessing. While shielded bearings perform well in a clean, high-speed environment, sealed bearings provide better protection against dirt and moisture.
Knowing the difference between sealed and shielded bearings can help you increase reliability, minimize maintenance, and prolong equipment life. Working with an experienced bearing manufacturer with expertise in the manufacturing of bearing will help you get high-quality products that meet your needs.
